产品型号

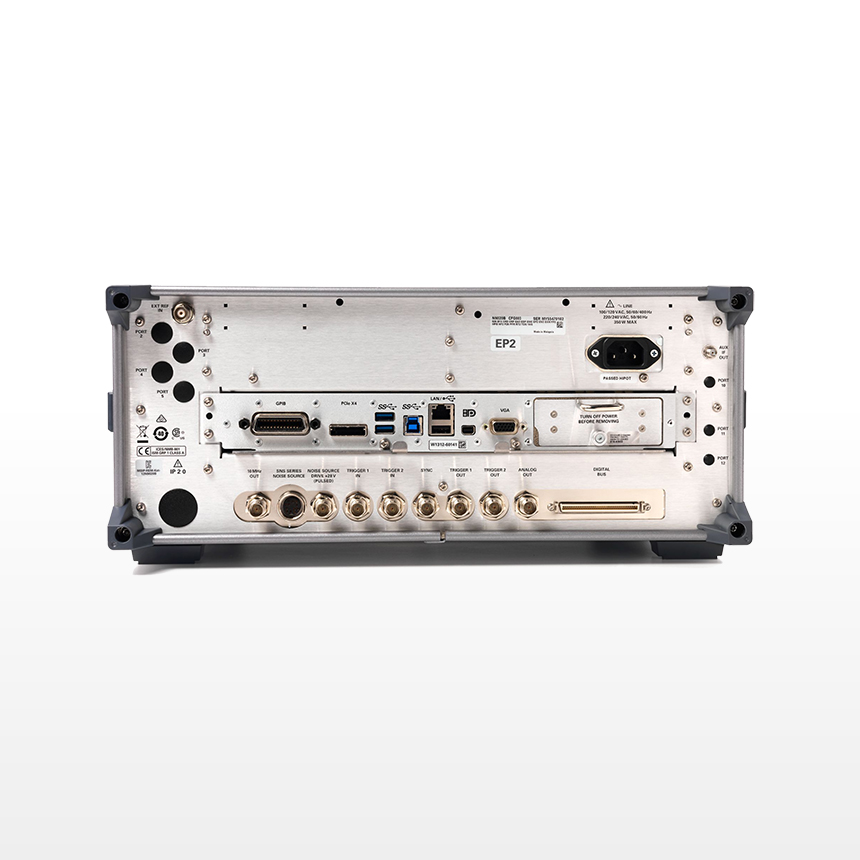

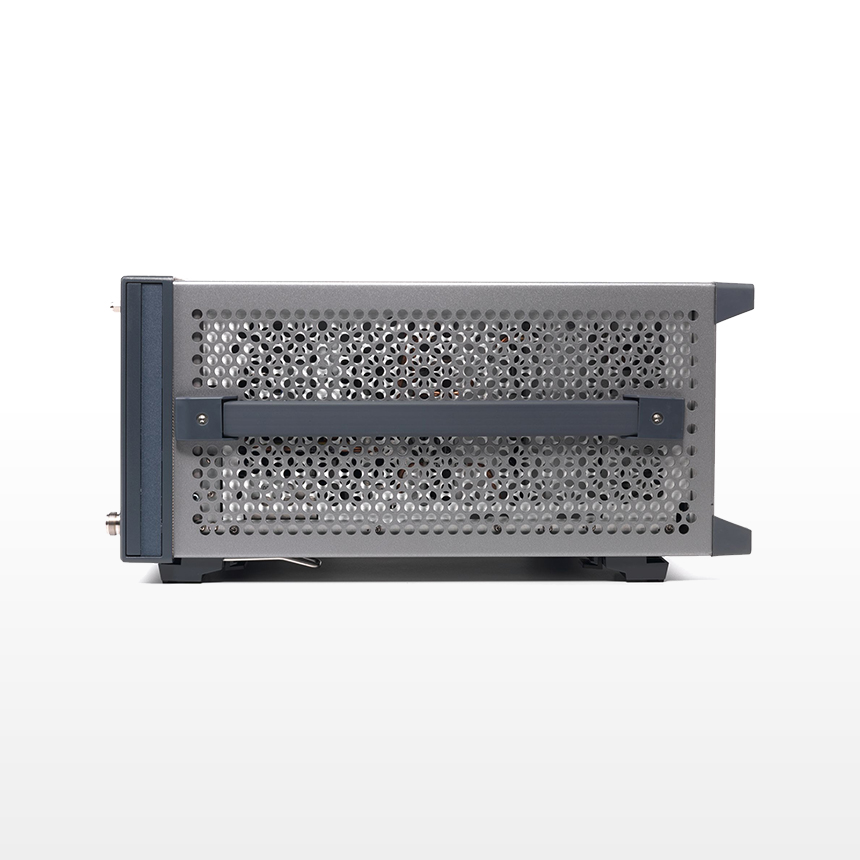

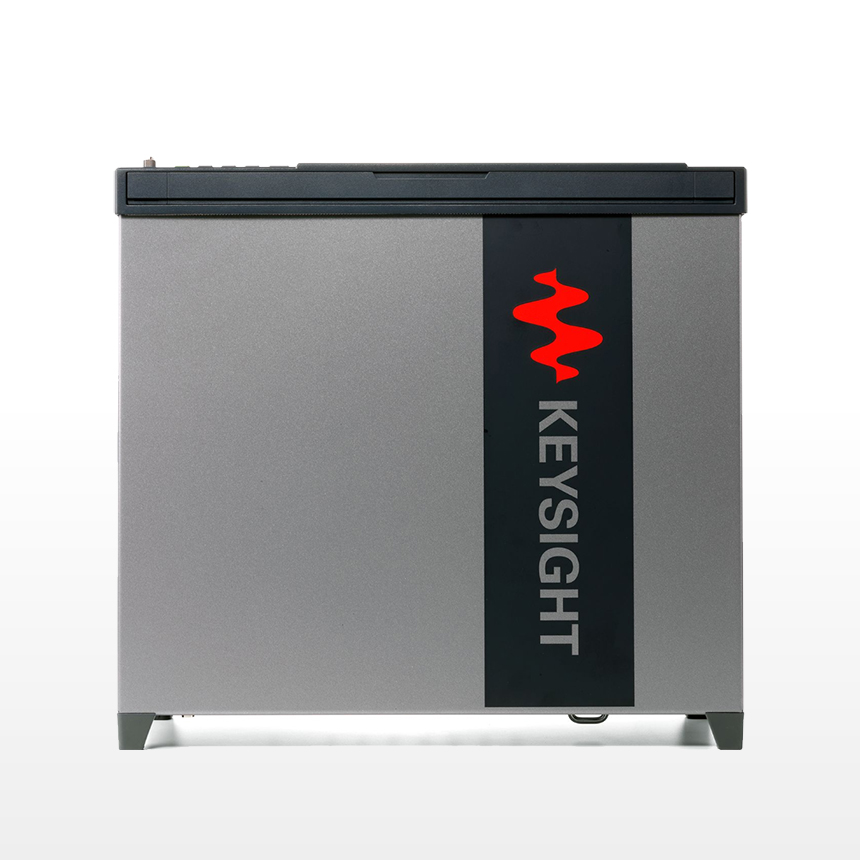

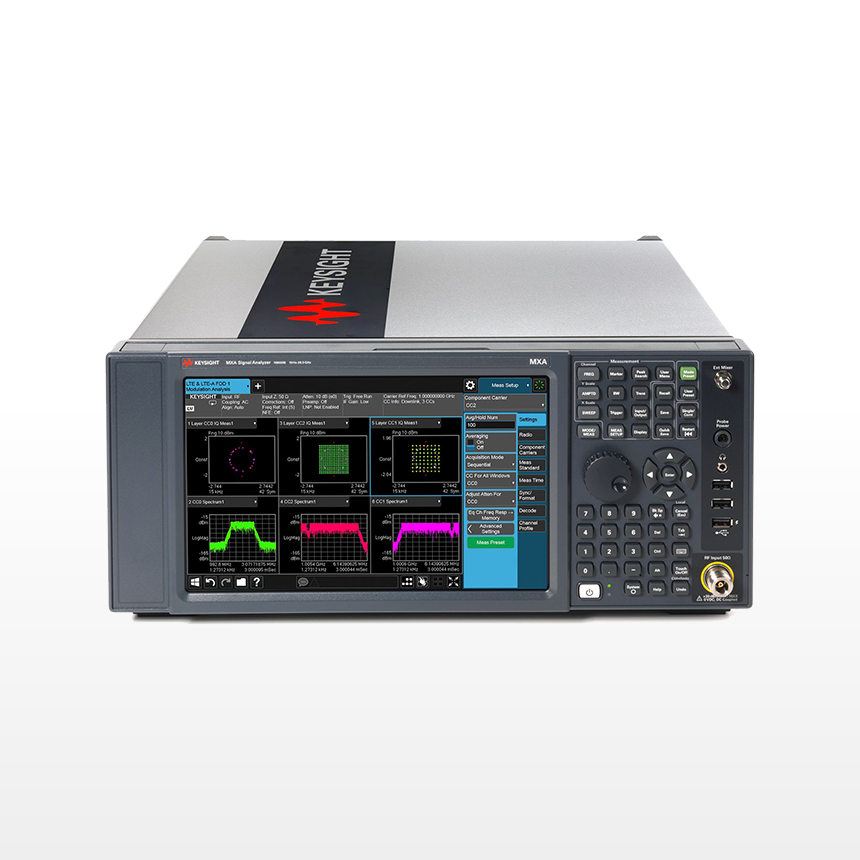

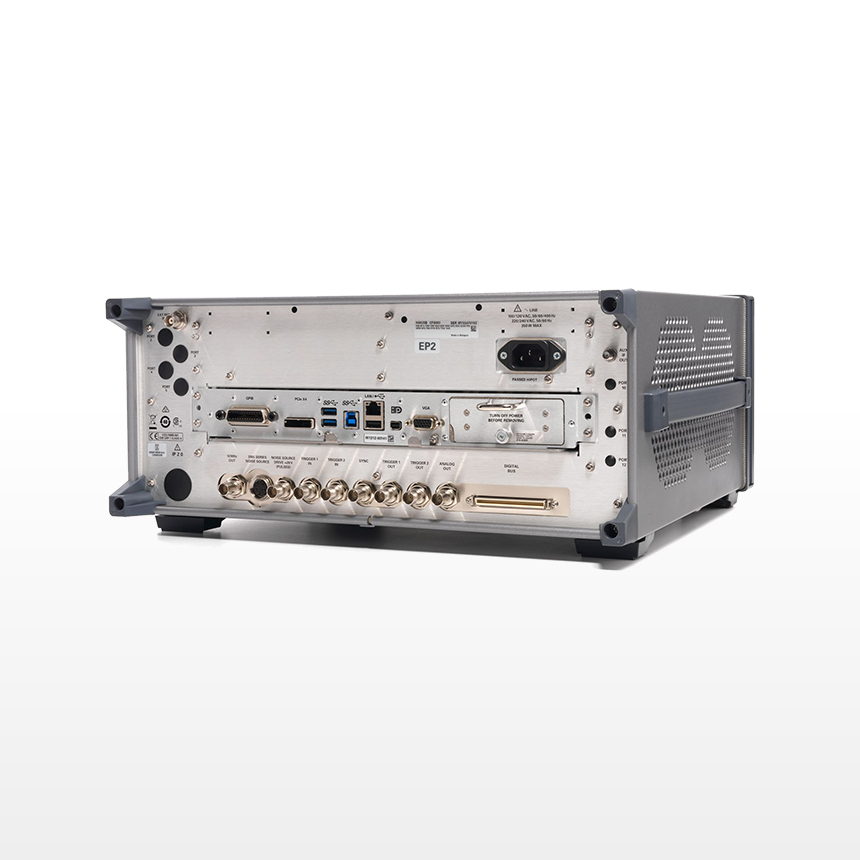

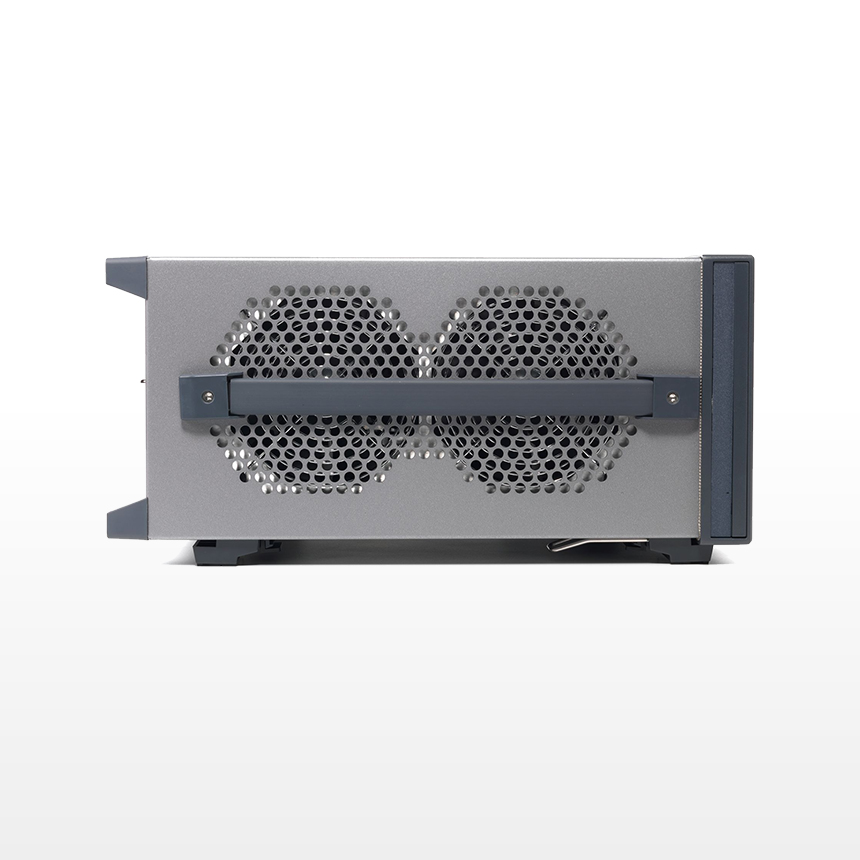

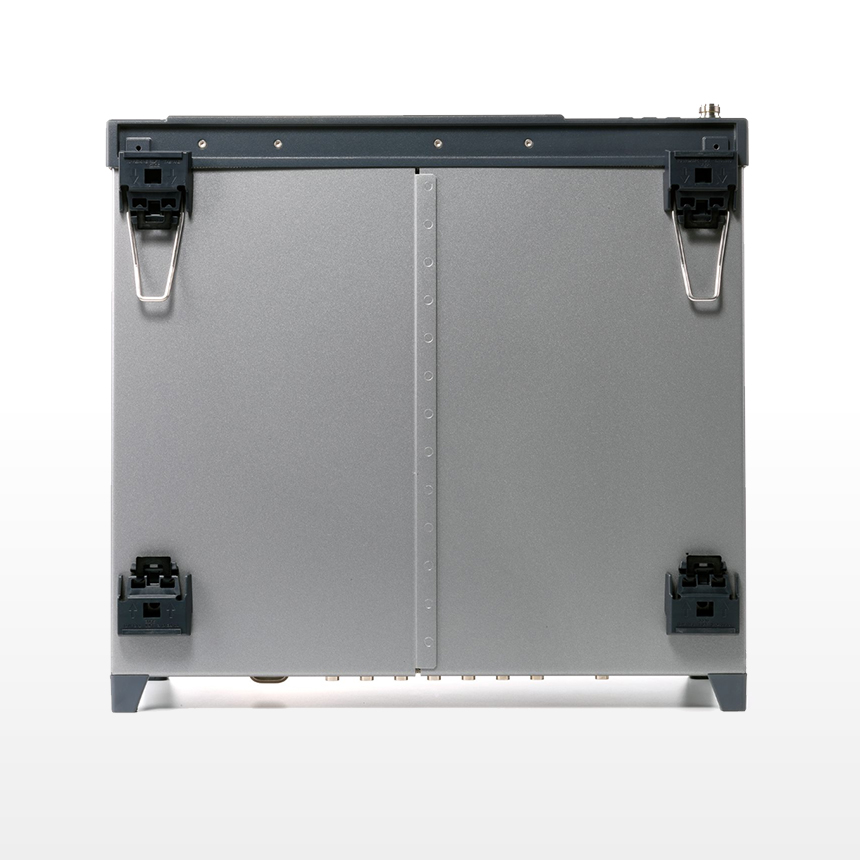

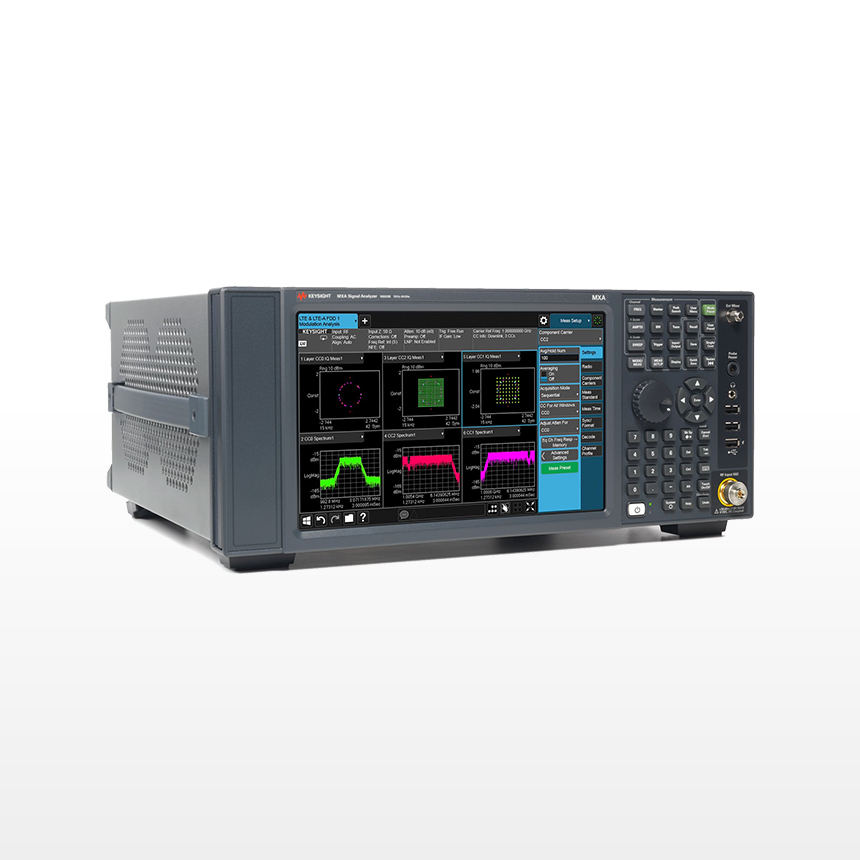

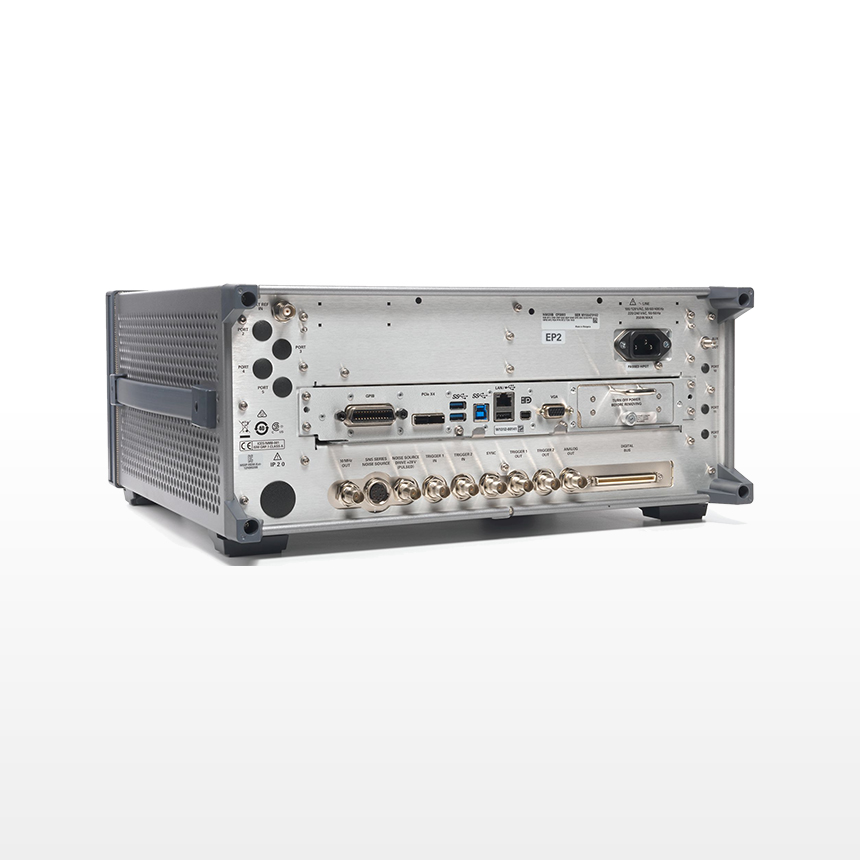

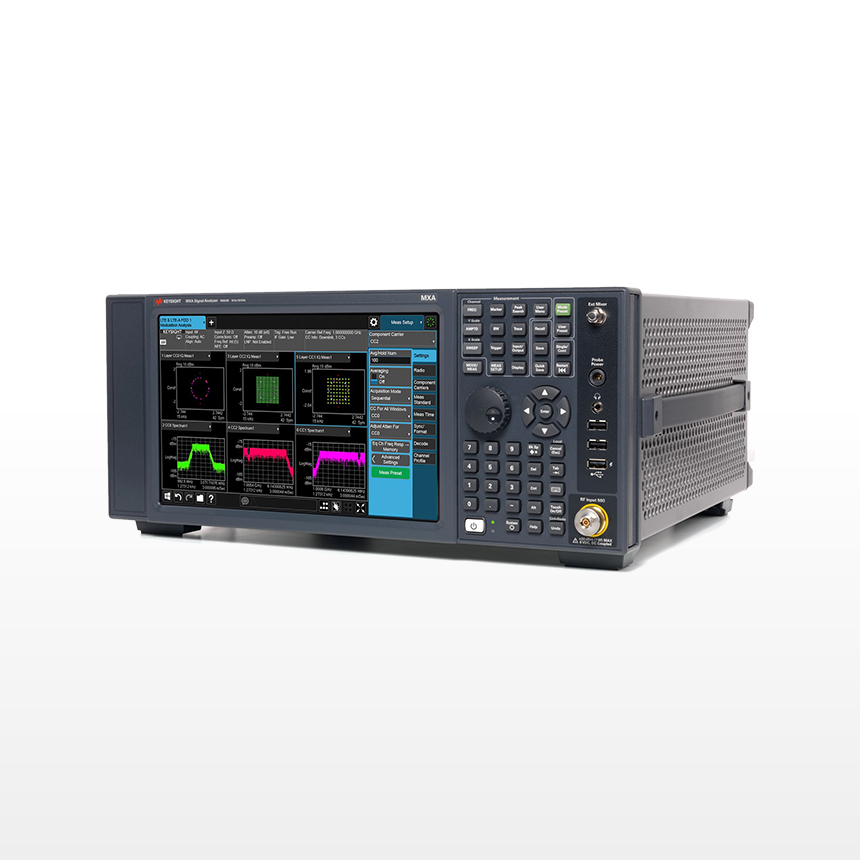

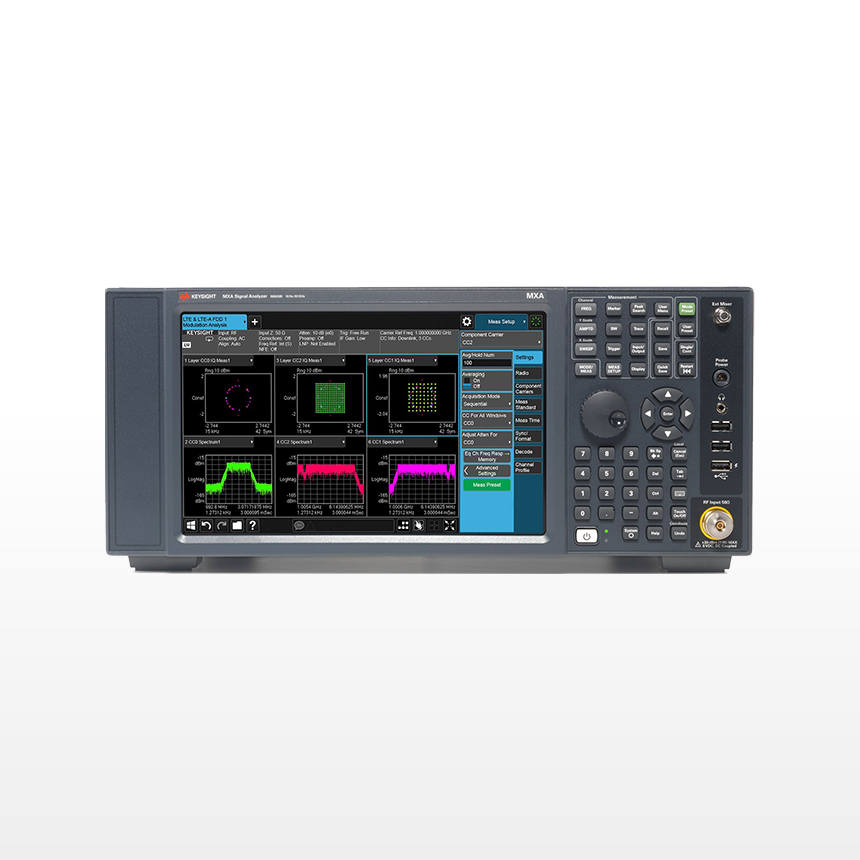

N9020B MXA 信号分析仪
多点触控，10 Hz 至 50 GHz
主要特性和功能
快速适应无线器件不断演进的测试要求；
通过硬件加速功率测量缩短测试时间；
显示更新速率快，并且具有游标峰值搜索和快速扫描功能；
X 系列应用软件提供一键式测量，显著简化测试；
全频段实时频谱分析能够捕获偶发或瞬态信号。
X 系列信号分析仪
利用我们最先进的信号分析工具帮助您进行设计、测试，实现新的突破
提供从最高性能实时分析到低成本基本测量等多个选择
使用最广泛的特定应用软件，实现更深层次的故障诊断或执行一键式测量
产品通过售后升级服务可以伴随技术的变化演进，包括频率、带宽、实时、CPU 等
不论您使用哪一款仪器，从研发到生产都能保持 100% 的代码兼容性，可确保在公司内部实现一致性测量
通过切实可用的性能更快获得分析结果
全新多点触控用户界面让测量设置变得简单明了，并提供定制视图
利用实时频谱分析功能查看、捕获并分析最罕见的信号，包括已知和未知信号
凭借 510 MHz 带宽和 >75 dBc 无杂散动态范围，查看以往难以观测的信号
使用本底噪声扩展（NFE）技术将测量噪声降低最多 10 dB，可以提高低电平信号测量的精度
选件
| Frequency range | |||
| N9020B-503 | Frequency Range, 10 Hz to 3.6 GHz | ||
| N9020B-508 | Frequency Range, 10 Hz to 8.4 GHz | ||
| N9020B-513 | Frequency Range, 10 Hz to 13.6 GHz | ||
| N9020B-526 | Frequency Range, 10 Hz to 26.5 GHz | ||
| N9020B-532 | Frequency Range, 10 Hz to 32 GHz | ||
| N9020B-544 | Frequency Range, 10 Hz to 44 GHz | ||
| N9020B-550 | Frequency Range, 10 Hz to 50 GHz | ||
| Preamplifier | |||
| N9020B-P03 | Preamplifier, 3.6 GHz | ||
| N9020B-P08 | Preamplifier, 8.4 GHz | ||
| N9020B-P13 | Preamplifier, 13.6 GHz | ||
| N9020B-P26 | Preamplifier, 26.5 GHz | ||
| N9020B-P32 | Preamplifier, 32 GHz | ||
| N9020B-P44 | Preamplifier, 44 GHz | ||
| N9020B-P50 | Preamplifier, 50 GHz | ||
| Bandwidth | |||
| N9020B-B1A | Analysis Bandwidth, 125 MHz | ||
| N9020B-B1X | Analysis Bandwidth, 160 Mhz | ||
| N9020B-B40 | Analysis Bandwidth, 40 MHz | ||
| N9020B-B85 | Analysis Bandwidth, 85 MHz | ||
| Performance Options | |||
| N9020B-MPB | Microwave Preselector Bypass | ||
| N9020B-NF2 | Noise Floor Extension | ||
| N9020B-PFR | Precision Frequency Reference | ||
| N9020B-DP2 | Deep Capture Memory | ||
| N9020B-EA3 | Electronic Attenuator, 3.6 GHz, Upgrade | ||
| Baseband Inputs | |||
| N9020B-BBA | I/Q Baseband Inputs, Analog | ||
| Calibration Options | |||
| N9020B-AMG | Calibration + Uncertainties + Guardbanding (Accredited) | ||
| N9020B-A6J | ANSI Z540-1-1994 Calibration | ||
| N9020B-UK6 | Commercial Calibration Certificate with Test Data | ||
| Connection Options | |||
| N9020B-CR3 | Connector, Wideband IF Output | ||
| N9020B-CRP | Connector, Programmable Rear IF Output | ||
| N9020B-YAS | Y-Axis Ouptut | ||
| External Mixing | |||
| N9020B-EXM | External Mixing | ||
| Portable Packaging | |||
| N9020B-PRC | Portable Configuration | ||
| Security - PC features | |||
| N9020B-SF2 | Security Features, Prohibit Saving Results | ||
| N9020B-SSD | Additional Removable Solid State Drive | ||
| N9020B-SF1 | Security Features, Exclude Launching Programs | ||
| N9020B-SS1 | Additional removable solid state drive, Win10 | ||
| Application software | |||
| 89601B | - 89600 VSA 软件 | ||
| N6171A | MATLAB 软件 | ||
| Real Time Recorder | |||
| N9020B-RTR | Real-Time Spectrum Recorder And Analyzer Application Example, License | ||
| Accessories | |||
| 1CM113A | Rack mount flange kit 177.0mm H (4U) - two flange brackets, 2015 color | ||
| 1DVR001A | ROM/CD-R/RW drive | ||
| 1MSE001A | Mouse | ||
| MLP001A | Minimum loss pad, 50 to 75 ohm | ||
| 1CR013A | Rack Slide Kit for 11in, 14in, and 16in Mounting Holes | ||
| Additional Documentation | |||
| N9020B-AB1 | Korean localization, user interface and getting started guide | ||
| N9020B-AB2 | Chinese localization, user interface and getting started guide | ||
| N9020B-ABE | Spanish localization, user interface and getting started guide | ||
| N9020B-ABF | French localization, user interface and getting started guide | ||
| N9020B-ABJ | Japanese localization, user interface and getting started guide | ||
| N9020B-AKT | Russian localization, user interface and getting started guide | ||
| Application Software with Subscription | |||
| N6141EM0E | EMI Measurement Application | ||
| N9061EM0E | Remote Language Compatibility Measurement Application | ||
| N9077EM0E | WLAN 802.11a/b/g/j/p/n/af/ah Measurement Application | ||
| N9062EM0E | SCPI Language Compatibility Measurement Application | ||
| N9063EM0E | Analog Demodulation Measurement Application | ||
| N9067EM0E | Pulse Analysis Measurement Application | ||
| N9068EM0E | Phase Noise Measurement Application | ||
| N9069EM0E | Noise Figure Measurement Application | ||
| N9071EM0E | GSM/EDGE/Evo Measurement Application | ||
| N9073EM0E | W-CDMA/HSPA+ Measurement Application | ||
| N9077EM1E | WLAN 802.11a/b/g/j/p/n/af/ah Measurement Application | ||
| N9080EM0E | LTE and LTE-Advanced FDD Measurement Application | ||
| N9080EM3E | NB-IoT and eMTC FDD Measurement Application | ||
| N9081EM0E | Bluetooth (TM) Measurement Application | ||
| N9082EM0E | LTE and LTE-Advanced TDD Measurement Application | ||
| N9084EM0E | Short Range Communications Measurement Application | ||
| N9085EM0E | 5G NR Measurement Application | ||
| N9020RT1B | 高达 85 MHz 带宽的实时分析，基本检测，多点触控 | ||
| N9020RT2B | 高达 160 MHz 带宽的实时分析，基本检测，多点触控 | ||
| N90EMEDPB | Enhance Display Package | ||
| N90EMEMCB | Basic EMC Functionality | ||
| N90EMESCB | External Source Control | ||
| N90EMFP2B | Fast Power, up to 510 MHz Bandwidth | ||
| N90EMFT1B | Frequency Mask Trigger, Basic Detection | ||
| N90EMFT2B | Frequency Mask Trigger, Optimum Detection | ||
| N90EMTDSB | Time Domain Scan | ||
| N9054EM0E | VMA Vector Modulation Analysis Measurement Application | ||
| N9054EM1E | Vector Modulation Analysis Custom OFDM Application | ||
| N90EMRBEB | Resolution Bandwidth Extended | ||
| N9072EM0E | cdma2000 measurement application, remote control only | ||
| N9076EM0E | 1xEV-DO measurement application, remote control only | ||
| N9079EM0E | TD-Scdma/HSPA measurement application, remote control only | ||
| N9080EM4E | LTE V2X measurement application | ||
| 89601200C | Basic vector signal analysis and hardware connectivity | ||
| 89601301C | Multi-vendor hardware connectivity | ||
| 89601AYAC | Digital demodulation analysis | ||
| 89601B7NC | 3G modulation analysis | ||
| 89601B7RC | Wireless connectivity modulation analysis | ||
| 89601BHFC | Custom OFDM modulation analysis | ||
| 89601BHGC | LTE/LTE-A FDD modulation analysis | ||
| 89601BHHC | LTE/LTE-A TDD modulation analysis | ||
| 89601BHMC | DOCSIS modulation analysis | ||
| 89601BHNC | 5G NR modulation analysis | ||
| 89601BHPC | FMCW radar analysis | ||
| 89601BHQC | Pulse analysis | ||
| 89601BHTC | IoT modulation analysis | ||
| 89601BHXC | High throughput WLAN modulation analysis | ||
