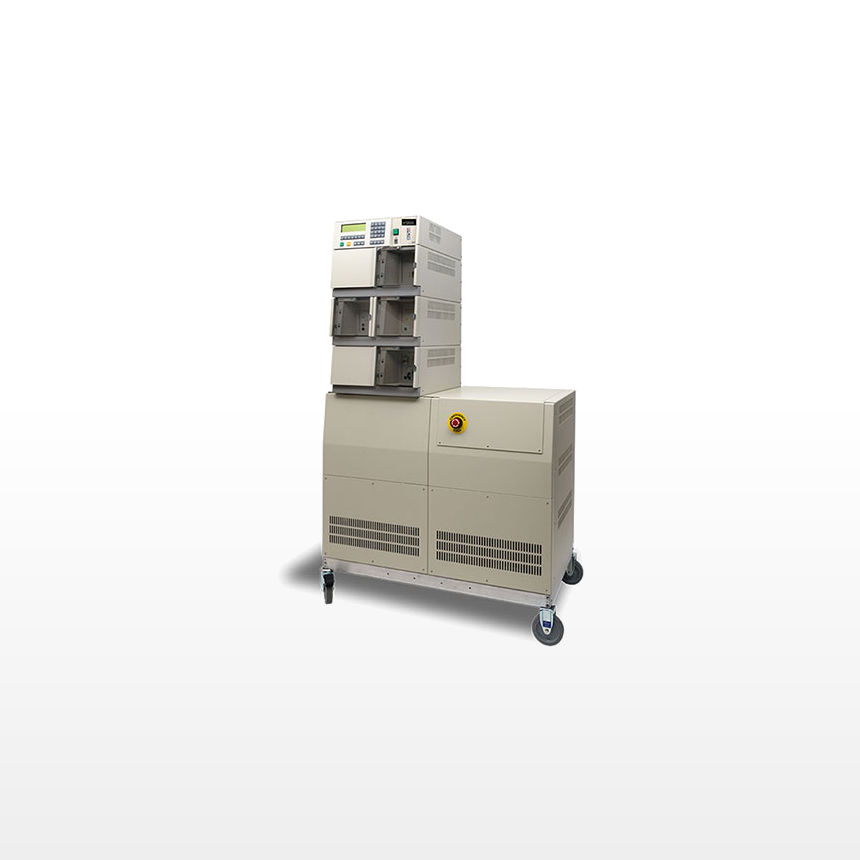

ECAT闪电测试系统

源自ThermoFisher的闪电测试系统<br/>行业主流产品,广泛应用于民用及军用飞机系统测试

品牌:M Precision Labs

主要特性和功能:

安全,快速测试设置

简单用户接口

支持波形:1,2,3,4,5A,5B,6

等级(Level):1,2,3,4,5+

单次雷击,多次雷击,来自同一前面板的多次脉冲和引脚注入

模块化架构,电压尖峰

所有型号

  • 产品型号

    波形

    等级(Level)

    参考起价

  • ECAT闪电测试系统

    1, 2, 3, 4, 5A, 5B, 6

    1, 2, 3, 4, 5+

    联系我们

概述 技术指标 评论





ECAT Lightning Test System (LTS)


Modular LTS platform for multiple avionic standards




The M Precision Labs ECAT Lightning Test System (LTS) is a modular test platform


which tests to the lightning simulator requirements of

RTCADO-160, Section 22 and Section 17.


The system is expandable to meet

Boeing, Airbus, EUROCAE and other avionic standards.



Safe

Quick test set-up

Simple user interface

Waveforms: 1, 2, 3, 4, 5A, 5B and 6

Levels 1, 2, 3, 4 and 5+

Single Stroke, Multiple Stroke, Multiple Burst and Pin Injection from the same front panel

Modular architecture

Voltage spikes




When failure is not an option


With its fully-automated test operation, the M Precision Labs ECAT Lightning Test System (LTS) yields reliable,

repeatable and accurate test results to avionics lightning simulation requirements of RTCA DO 160 Section 22 and 17.

It is easily expandable to meet most Boeing, Airbus, EUROCAE and other requirements.

Building on the legacy of the proven ECAT platform, it provides field-upgradeable modular technology featuring fast test set- up,

intuitive programming, and front panel control. On-site calibration and field service is available worldwide.




System description


The ECAT LTS is configured as a basic test system available as a Level 3, Level 4, or Level 5 tester.

All test systems feature Single stroke, Multiple Stroke, Pin Injection and Multiple Burst test capability

integral to the system controls without any external connections.


The system is composed of a frame that houses power and control functions for the system.

Waveforms are produced from the modules inserted into the frame.

Both the frame and modules can be purchased separately.

Owning multiple frames allows increased capability by “swapping” modules between frames,

and testing with each frame simultaneously.




The Total System


The ECAT LTS provides a modular test platform based on the requirements

of RTCA DO-160G Section 17 (Voltage Spikes) and Section 22 (Lightning Induced Transient Susceptibility), EUROCAE, Boeing, Airbus and others.

The LTS can perform Pin Injection, Cable Bundle and Ground Injection testing with

Single Stroke, Multiple Stroke and Multiple Burst modes from the same module.

The system can be expanded as test requirements evolve or to allow

the operator to double his capacity using existing modules without purchasing another system.




Turn-key Testing


With the advent of the ECAT LTS, lightning testing of avionics comes of age with an easy to use,

turn-key solution for test engineers and technicians. Until recently,

the availability of commercial equipment for testing to lightning standards for avionics, such as RTCA DO-160G,

has been limited. Most test equipment used in the industry was home-made:

difficult and time consuming to set-up and awkward to use,

often unsafe and requiring skilled engineers for their operation and maintenance.


Testing with the ECAT LTS insures repeatable,

reproducible test results while virtually eliminating tester set-up time.

Waveforms and functions are selected with the push of a button rather than by reconfiguring test equipment

and moving around bulky generator boxes and wiring.

The ECAT LTS can significantly reduce total test time resulting in significant cost savings.




Versatile, Modular Architecture


ECAT LTS modular systems are totally open-ended to protect you as industry standards evolve.

Built upon the proven modular construction of the M Precision Labs ECAT System,

ECAT LTS waveform simulators use plug-in modules that can be added or replaced by the operator at any time wi




Currently Available LTS Modules1:



Waveform

Pin Injection

Single Stroke

Multiple Stroke

Multiple Burst

Description

Plug-in Module

WF1

6.4µs X 69µs Current Wave

D561, D566

WF2

≤100ns x 6.4µs Voltage Wave

D562

WF3- 1 MHz

1 MHz Oscillatory Voltage Wave

D563

WF3- 10 MHz

10 MHz Oscillatory Voltage Wave

D563

WF4

6.4µs X 69µs Voltage Wave

D561, D566

WF5A

40µs X 120µs Current Wave

D561, D567

WF5A Airbus / Boeing

40µs X 120µs Voltage & Current Wave

D568

WF5B

50µs X 500µs Current Impulse

D564

WF6

0.25µs X 4.0µs Current Impulse

D569

Voltage Spikes

2

≤2µs X ≥10µs, ≤2µs X ≥50µs, ≤2µs X
≥100µs, ≤2µs X ≥200µs, ≤2µs X ≥400µs

D570

1 See specifications 2 Up to 50 pulses in 60 seconds


LTS Display

Standards Compliance

Min. Applic. Time

Max # Trans

Max # Bursts

Time Between Bursts

Time Between Transients

DO160

DO160
Boeing D6-16050-5
Airbus ABD0100.1.2-F
Airbus ABD0100.1.2-G

3 sec

20

3

30-300ms

50-10,000µs

Airbus/E

Airbus ABD0100.1.2-E

15 sec

500

1

------------------

10-10,000µs

Boeing-4

Boeing D6-16050-4 NH-90

3 sec

20

24

10-200ms

10-50µs




One example of the multiple standards supported for WF3 Multiple Burst Test Mode:


Example test setup for WF3 Single Stroke, Multiple Stroke, Multiple Burst and Pin Injection from the same module front panel



Test Setup


Controller front panel programming for above example



1. Select Test Type: Pin Injection, Single Stroke, Multiple Stroke or Multiple Burst


Test Type


2. Select waveform type, voltage levels and timing


Waveform Type


It doesn’t get any easier than this!
